OMT 3ton Direct Cooling Ice Block Machine
OMT3ton direct cooling ice block machine
OMT 3ton direct cooling ice block machine?is highly automatic, automatic water supply, automatic ice making, automatic ice harvest, need no manual operation.
Compare with Saltwater type ice block machine,Direct Cooling type is more convenient ,it’s automatically with touch screen control,easy operating,users-friendly.
It doesn’t need to use brine water. The ice mold doesn’t need to be replaced after long time service.
Different size of ice block is available:5kg/10kg/15kg/20kg etc.
OMT 3ton Direct Cooling Ice Block Machine Testing Video
3ton direct cooling ice block machine Parameter:
| Item | DOTB30 | |
| Machine?Capacity | 3,000kg/day | |
| Ice?Block?Weight | 10kg(5kg/15kg/20kg/25kg etc.for option) | |
| Ice?Block?Size | 240*90*644mm | |
| Material | Ice?Mold | Aluminum?Plate,?corrosion?free |
| ? | Main Frame | Stainless?Steel?304 |
| Ice Freezing Time | 45 blocks /210mins | |
| Refrigerant | R22(R404a for option) | |
| Cooling?Way | Air Cooled(Water Cooled) | |
| Compressor | Bitzer/Refcomp | |
| Supply Power | 220V~480V,?50Hz/60Hz,?3P | |
| Machine Power | 46KW | |
| Machine?Dimensions | 5100*1100*1600mm | |
| Ice?Harvest?Way | Automatic | |
| Warranty | 12months | |
Machine Features:
Daily Capacity: 3tons 24 hrs
Machine power supply: 3 phase industrial power supply
PLC controlling system, very easy to use.
Automatic operation to save your labor work
Clean and edible ice block
Compact design and space saving
Fast ice making time
Low energy consumption
Easy operation and low maintenance

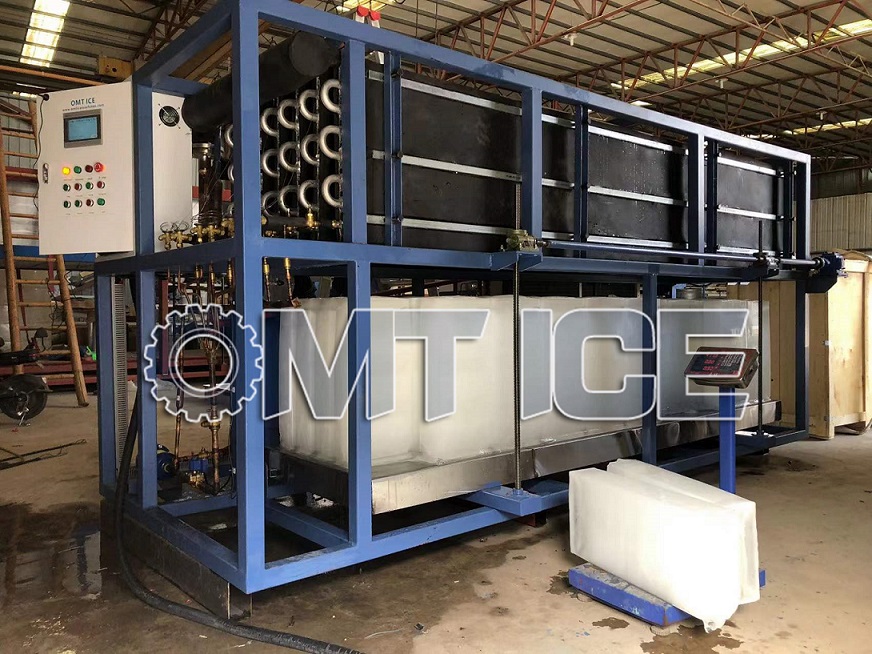

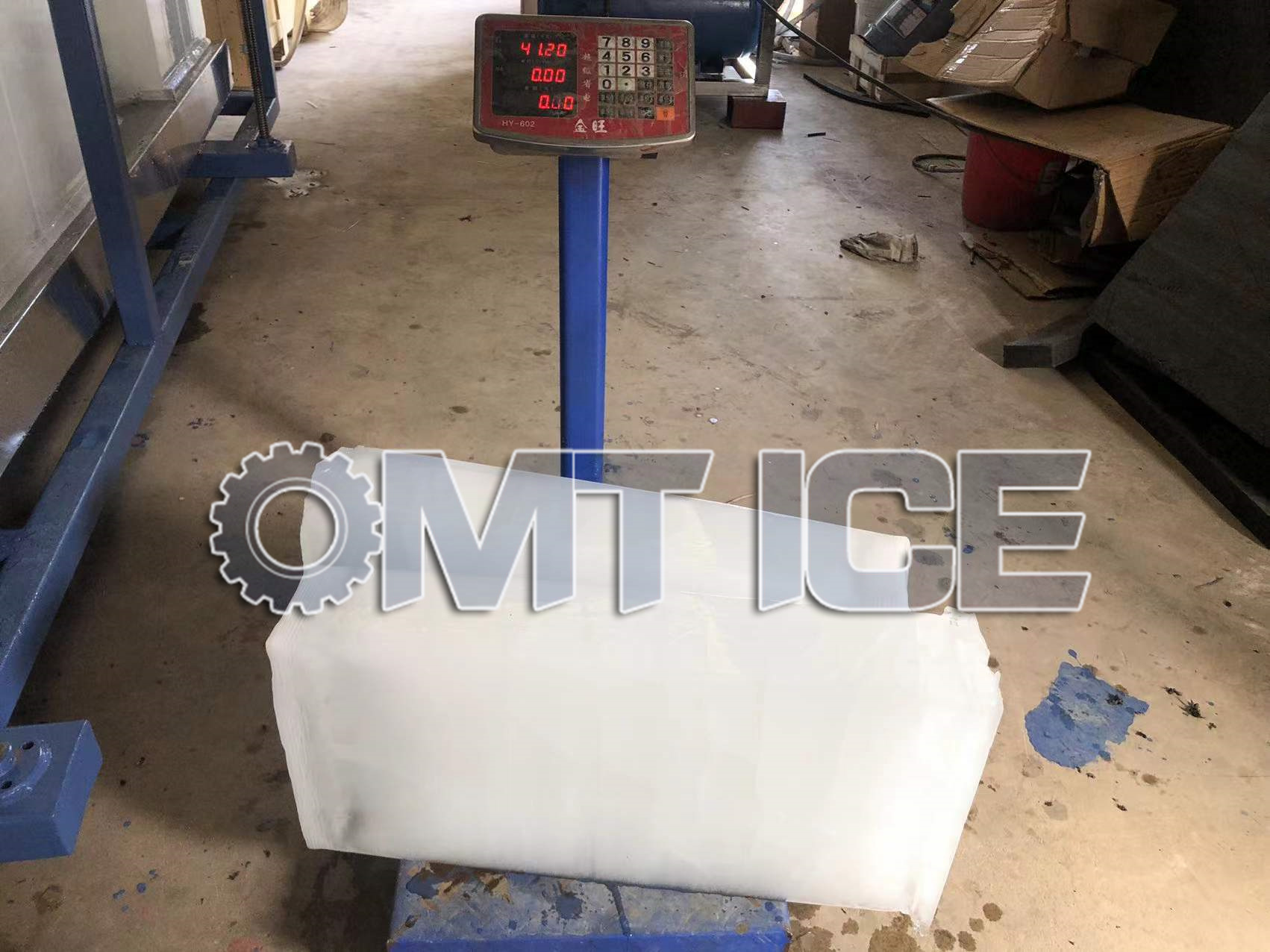

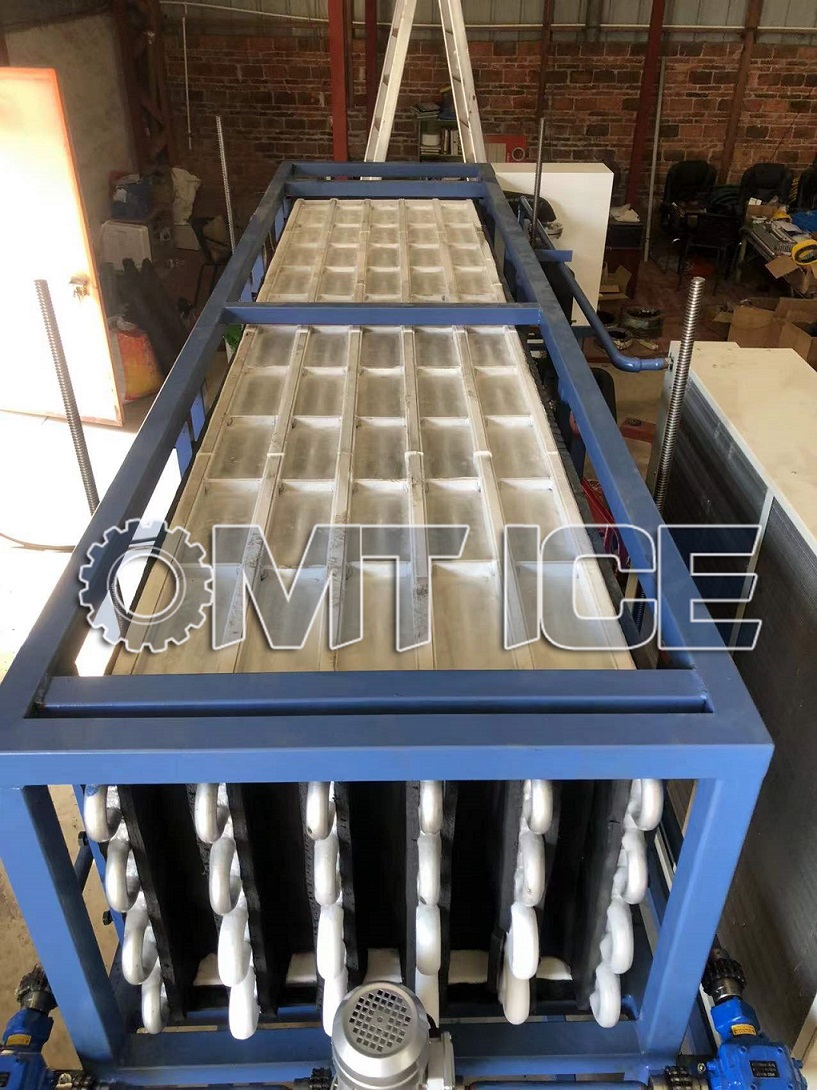

3ton direct cooling ice block machine Pictures:

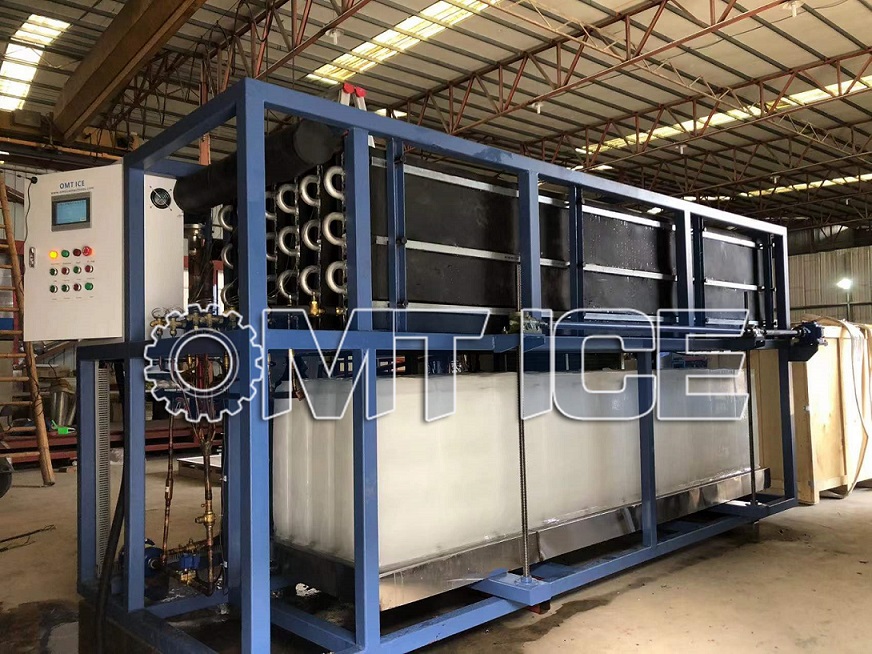

Front View

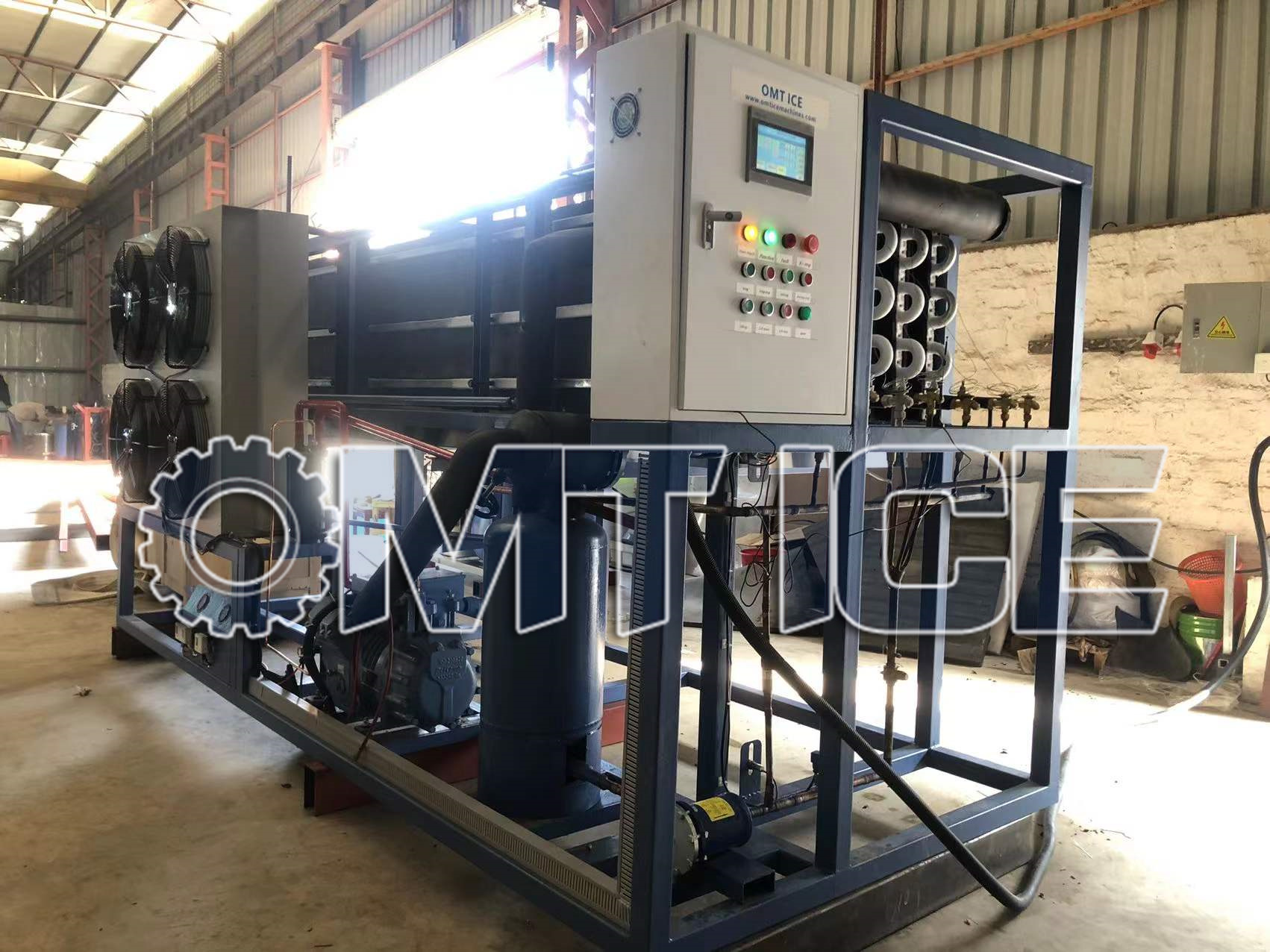

Side View
Main application:
Used in restaurants, bars, hotels, nightclubs, hospitals, schools, laboratories, research institutes and other occasions as well as supermarket food preservation, fishing refrigeration, medical applications, chemical, food processing, slaughtering and freezing industries
