5Ton Ice Block Machine(1000pcs of 5kg Ice Per day)
題-1.jpg)
題-1-300x225.jpg)
OMT 5Ton Ice Block Machine
OMT block ice making machine, adopts separate design for ice machine and salt water tank, can be installed in the container.
The machine starts to work once the water pipes and electricity power are connected,?also?easy to transport.
It mainly for making?5kg, 10kg ,20kg and 50kg ice.
OMT 5Ton Ice Block Machine Testing Video
5T Ice Block Machine Parameter:
| Model | OTB50 | |||
| Machine?Capacity | 5000KG/24HRS | |||
| Weight?of?Ice?Block | 10KG/PCS(available?for 20KG, 30KG etc.) | |||
| Ice?Block?Size | 100*205*600MM | |||
| Material | Water?Tank | Stainless?Steel?304 | ||
| Ice?Moulds | ||||
| Ice?Freezing?Time | 130PCS/6HRS | |||
| 520PCS/24HRS | ||||
| Refrigerant | R22 | |||
| Condenser | Water?Cooled(Air Cooled) | |||
| Supply?Power | 220V~480V,?50Hz/60Hz,?3P | |||
| Machine?Power | Compressor | 25HP | 25.6KW | |
| Salt Water?Pump | 4KW | |||
| Cooling?Water?Pump | 2.2KW | |||
| Cooling?Tower?Motor | 0.75KW | |||
| Machinery?Unit?Dimension | 1870*870*1730MM | |||
| Salt Water?Tank?Dimension | 2850*1600*1100MM | |||
| Warranty | 12 Months | |||
Machine Features:
1) Strong and Durable parts.
All compressor and refrigerant parts are world first class.
2) Low energy consumption.?
Energy consumption saves up to 30% compare with traditional equipment.
3) Low maintenance, stable performance.?
4) High quality material.
The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.
5) Sophisticated heat insulation technology.
The ice making tank adopts high density Polyurethane foam for perfect heat insulation.

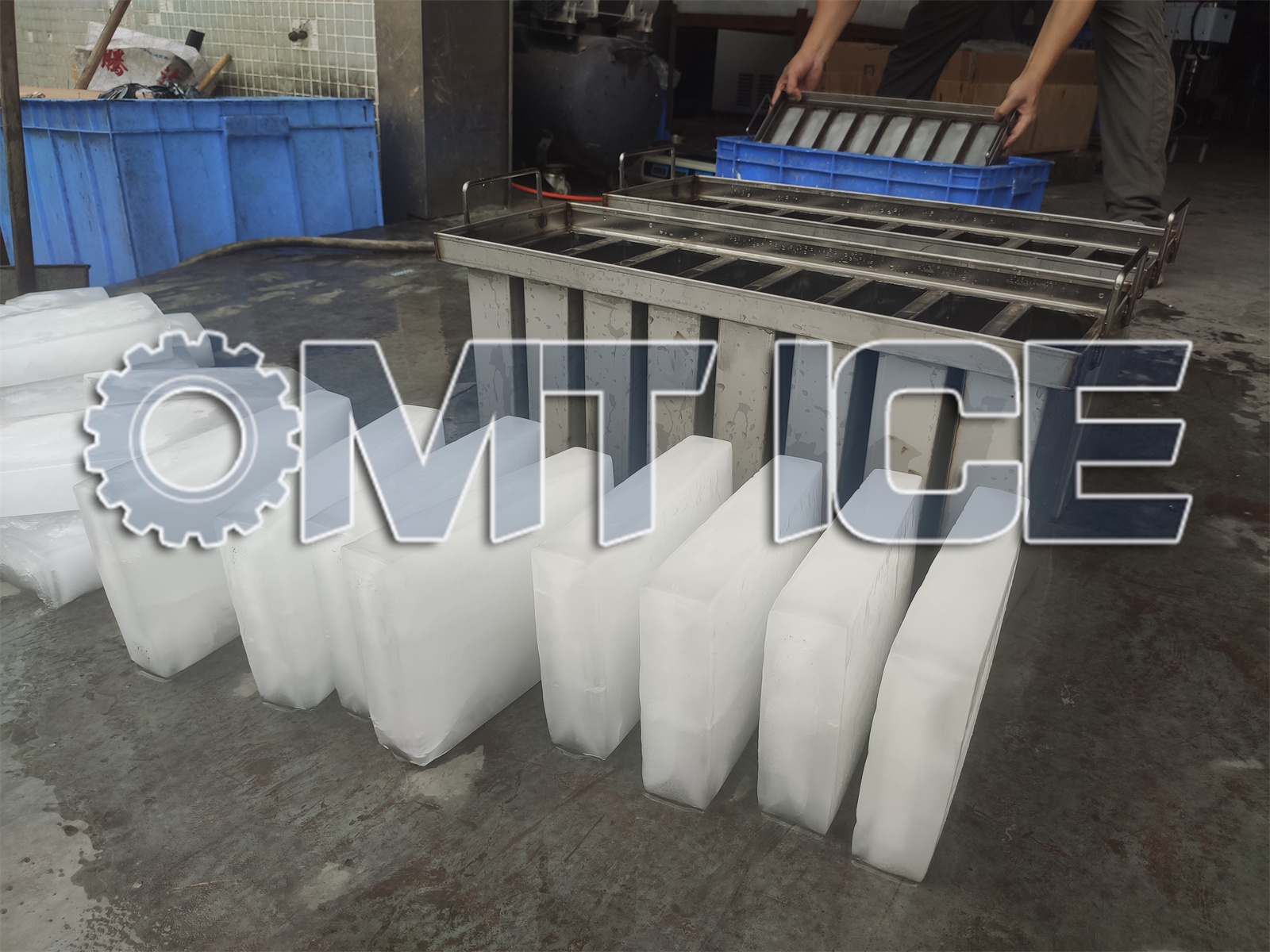

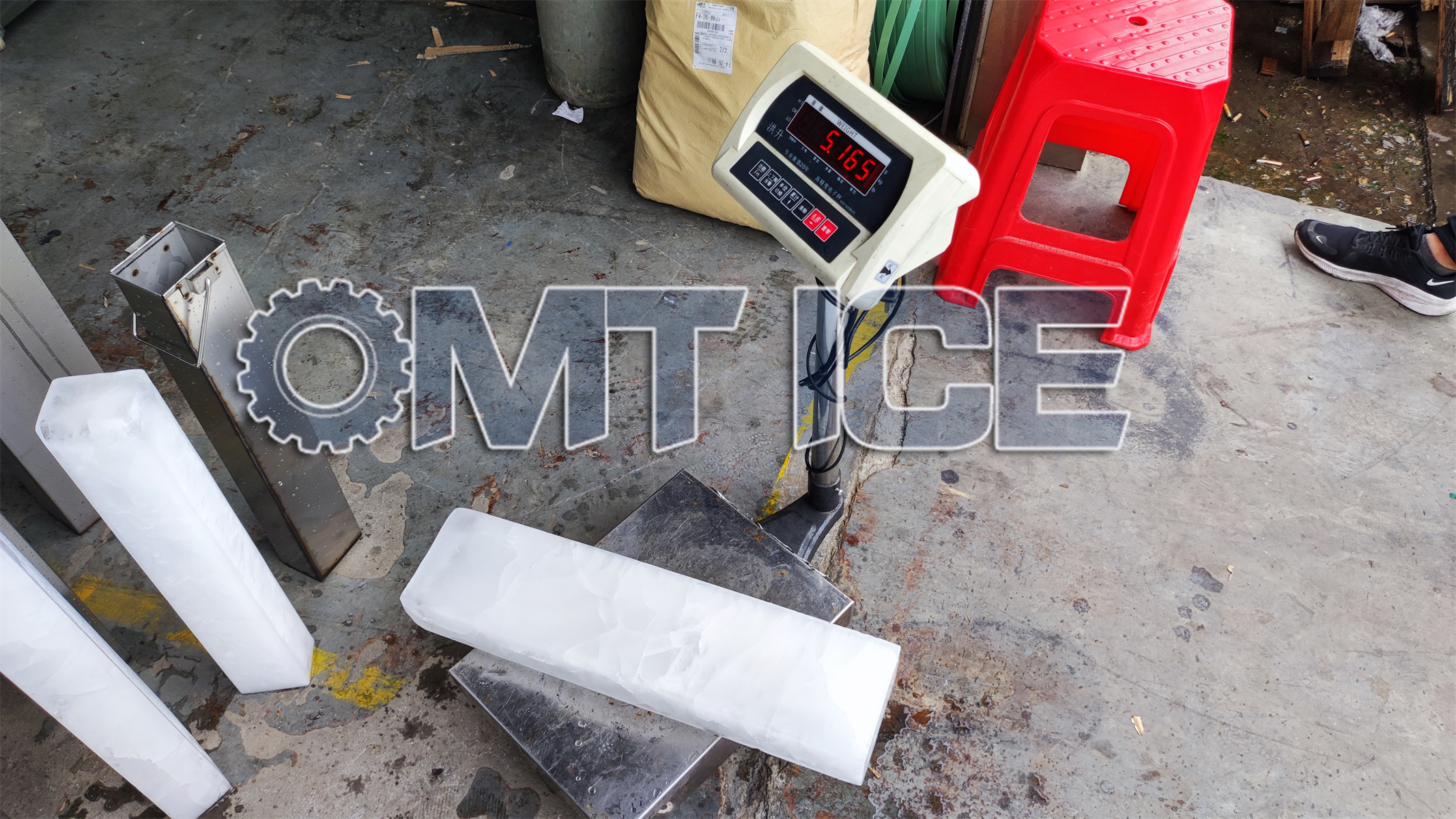

OMT5ton Ice Block Machine Pictures:
Front View
Side View
Main application:
Used in restaurants, bars, hotels, nightclubs, hospitals, schools, laboratories, research institutes and other occasions as well as supermarket food preservation, fishing refrigeration, medical applications, chemical, food processing, slaughtering and freezing industries
